Snort: An Overview and Historical Background¶

Snort is a widely used open-source solution for network security that can function as both a Network Intrusion Detection System (NIDS) and a Network Intrusion Prevention System (NIPS). It is primarily rule-based, using signatures and policy rules to identify malicious or suspicious patterns in network traffic.

Official description: “Snort is the foremost open-source Intrusion Prevention System (IPS) in the world. Snort IPS uses a series of rules that help define malicious network activity and uses those rules to identify matching packets and generate alerts for users.”

Historical Background¶

• 1998 - Initial release. Snort was created by Martin Roesch as a lightweight packet sniffer and intrusion detection tool. Its speed and simplicity quickly attracted users in both academia and industry.
• 2001–2005 - Rapid growth. A rich, community-driven rule language and ecosystem of shared signatures turned Snort into one of the first widely adopted open-source IDS platforms.
• 2013 - Cisco acquisition of Sourcefire. Roesch’s company Sourcefire (the commercial steward of Snort) was acquired by Cisco. Ongoing development and threat-intelligence curation are now led by Cisco Talos in collaboration with the open-source community.
• 2019+ - Snort 3. A major architectural update introduced a more modular, performance-oriented engine with improved rule parsing, scalability, and extensibility.

How Snort Works (High Level)¶

1. Packet capture: Snort inspects network traffic in real time (libpcap or equivalent).
2. Preprocessors: Optional modules normalize and prepare traffic (e.g., defragmentation, stream reassembly, protocol decoding).
3. Detection engine: Packets/streams are matched against rules that describe threats using signatures, protocol/flow context, and payload conditions.
4. Actions & logging: Depending on mode and rule actions, Snort can alert, log, or drop/block traffic (inline IPS).

Key Capabilities¶

• Signature-based detection: Match known attack patterns (exploits, malware C2, scans).
• Protocol analysis & normalization: Catch evasions and malformed traffic.
• Content and PCRE matching: Deep payload inspection with flexible conditions.
• Multiple deployment modes:
• NIDS (passive): Monitor and alert.
• NIPS (inline): Prevent by dropping packets.
• Integration-friendly output: Unified2/JSON logs; works with SIEMs, dashboards, and SOC tooling.
• Rich rule ecosystem: Community and Talos rulesets, with continuous updates.

Common Use Cases¶

• Intrusion detection & prevention for enterprise and service-provider networks.
• Threat hunting & forensics via detailed logs and packet captures.
• Compliance & monitoring (e.g., detecting policy violations or suspicious lateral movement).
• Lab/training environments to study network attacks and defenses.

IDS vs IPS Overview (Before Snort)¶

Before diving into Snort and traffic analysis, it's essential to understand what an Intrusion Detection System (IDS) and an Intrusion Prevention System (IPS) are. Both can be configured within a network infrastructure, but they serve different purposes.

Intrusion Detection System (IDS)¶

IDS is a passive monitoring solution designed to detect malicious activities, abnormal behavior, or policy violations. It generates alerts when suspicious events are detected, but it does not block or stop traffic.

Types of IDS:¶

• Network Intrusion Detection System (NIDS):
  Monitors traffic across an entire subnet. If a signature matches a known threat, an alert is triggered.

• Host-based Intrusion Detection System (HIDS):
  Monitors traffic and events on a single host or device. Detects local suspicious activity and generates alerts.

Intrusion Prevention System (IPS)¶

IPS is an active protection solution that not only detects but also prevents malicious activities. It can stop, block, or terminate the suspicious connection immediately upon detection.

Types of IPS:¶

• Network Intrusion Prevention System (NIPS):
  Monitors and protects the entire subnet by blocking malicious traffic.

• Behavior-based IPS (Network Behavior Analysis - NBA):
  Detects anomalies by learning what is considered “normal” traffic (baselining) and identifying deviations.

  Note: Training is crucial to reduce false positives. A poorly trained system may produce incorrect results or miss attacks.

• Wireless Intrusion Prevention System (WIPS):
  Focused on securing wireless networks by detecting and blocking wireless-based attacks.

• Host-based Intrusion Prevention System (HIPS):
  Protects a single endpoint, actively terminating malicious connections.

  HIPS works like HIDS but adds prevention capabilities instead of only generating alerts.

Detection & Prevention Techniques¶

IDS and IPS solutions typically use three main approaches:

Summary (IDS vs IPS)¶

• IDS → Detects threats, but requires user action to block them.
• IPS → Detects and automatically blocks threats in real time.

Snort: Overview¶

Snort is an open-source, rule-based Network Intrusion Detection and Prevention System (NIDS/NIPS) developed by Martin Roesch in 1998. It is maintained by the open-source community and the Cisco Talos team.

Official Description:
“Snort can be deployed inline to stop these packets, as well. Snort has three primary uses:
- As a packet sniffer like tcpdump
- As a packet logger (for network debugging)
- As a full-blown Network Intrusion Prevention System.”

Key Capabilities of Snort¶

• Live traffic analysis
• Attack and probe detection
• Packet logging
• Protocol analysis
• Real-time alerting
• Support for modules & plugins
• Pre-processors
• Cross-platform (Linux & Windows)

Snort Operating Modes¶

1. Sniffer Mode:
   Reads and displays IP packets in real-time on the console.

2. Packet Logger Mode:
   Logs all inbound and outbound IP packets for analysis.

3. NIDS/NIPS Mode:
   Detects and blocks packets classified as malicious based on user-defined rules.

Snort: First Interaction and Modes¶

This guide explains how to verify Snort installation, test configurations, and run Snort in different modes: Sniffer, Logger, IDS/IPS, and PCAP. Everything is inside a single code block for easy copy-paste.

0) Verify Installation & Config Test¶

Show Snort version¶

snort -V

Test the configuration file¶

sudo snort -T -c /etc/snort/snort.conf

Quiet mode (hide banner)¶

snort -q

Core Parameters¶

1) Sniffer Mode (like tcpdump)¶

Snort can display packet info on the fly.

Parameters¶

Examples¶

Verbose on eth0¶

sudo snort -v -i eth0

Verbose + payload¶

sudo snort -vd

Verbose + payload + link-layer¶

sudo snort -vde

Full packet dump¶

sudo snort -X

2) Logger Mode (save traffic)¶

Snort can log packets for later analysis.

Parameters¶

Examples¶

Log in current directory¶

sudo snort -dev -l .

Log in ASCII format¶

sudo snort -dev -K ASCII -l .

Read a log file¶

sudo snort -r snort.log -X

Read log with BPF filter¶

sudo snort -r snort.log icmp
sudo snort -r snort.log tcp
sudo snort -r snort.log 'udp and port 53'

Read only 10 packets¶

sudo snort -dvr snort.log -n 10

Ownership Note¶

Logs created as root → need sudo or change ownership:

sudo chown $USER:$USER snort.log

3) IDS/IPS Mode (rule-based detection)¶

Run Snort with rules from your config.

Parameters¶

Alert Modes¶

Examples¶

Test config¶

sudo snort -c /etc/snort/snort.conf -T

Run with console alerts¶

sudo snort -c /etc/snort/snort.conf -A console

IDS/IPS mode with parameter "-A cmg"¶

Cmg mode provides basic header details with payload in hex and text format.

sudo snort -c /etc/snort/snort.conf -A cmg

IDS/IPS mode with parameter "-A fast"¶

Fast mode provides alert messages, timestamps, and source and destination IP addresses. Remember, there is no console output in this mode.

sudo snort -c /etc/snort/snort.conf -A fast

IDS/IPS mode with parameter "-A full"¶

Full alert mode provides all possible information about the alert. Remember, there is no console output in this mode.

sudo snort -c /etc/snort/snort.conf -A full

IDS/IPS mode with parameter "-A none"¶

Disable alerting. This mode doesn't create the alert file. However, it still logs the traffic and creates a log file in binary dump format. Remember, there is no console output in this mode.

sudo snort -c /etc/snort/snort.conf -A none

Disable logging¶

sudo snort -c /etc/snort/snort.conf -N

Background mode¶

sudo snort -c /etc/snort/snort.conf -D

IPS mode and dropping packets¶

Snort IPS mode activated with -Q --daq afpacket parameters. You can also activate this mode by editing snort.conf file. However, you don't need to edit snort.conf file in the scope of this room. Review the bonus task or snort manual for further information on daq and advanced configuration settings: -Q --daq afpacket Activate the Data Acquisition (DAQ) modules and use the afpacket module to use snort as an IPS: -i eth0:eth1 Identifying interfaces note that Snort IPS require at least two interfaces to work. Now run the traffic-generator script as sudo and start ICMP/HTTP traffic.

sudo snort -c /etc/snort/snort.conf -q -Q --daq afpacket -i eth0:eth1 -A console

4) PCAP Mode (offline analysis)¶

Analyze pcap files for alerts and stats.

Parameters¶

Examples¶

Basic read¶

python snort -r sample.pcap

Read with config and alerts¶

sudo snort -c /etc/snort/snort.conf -q -r icmp.pcap -A console -n 10

Multiple pcaps¶

sudo snort -c /etc/snort/snort.conf --pcap-list="icmp.pcap http.pcap" -A console

Show pcap names¶

sudo snort -c /etc/snort/snort.conf --pcap-list="icmp.pcap http.pcap" -A console --pcap-show

5) Rule Basics¶

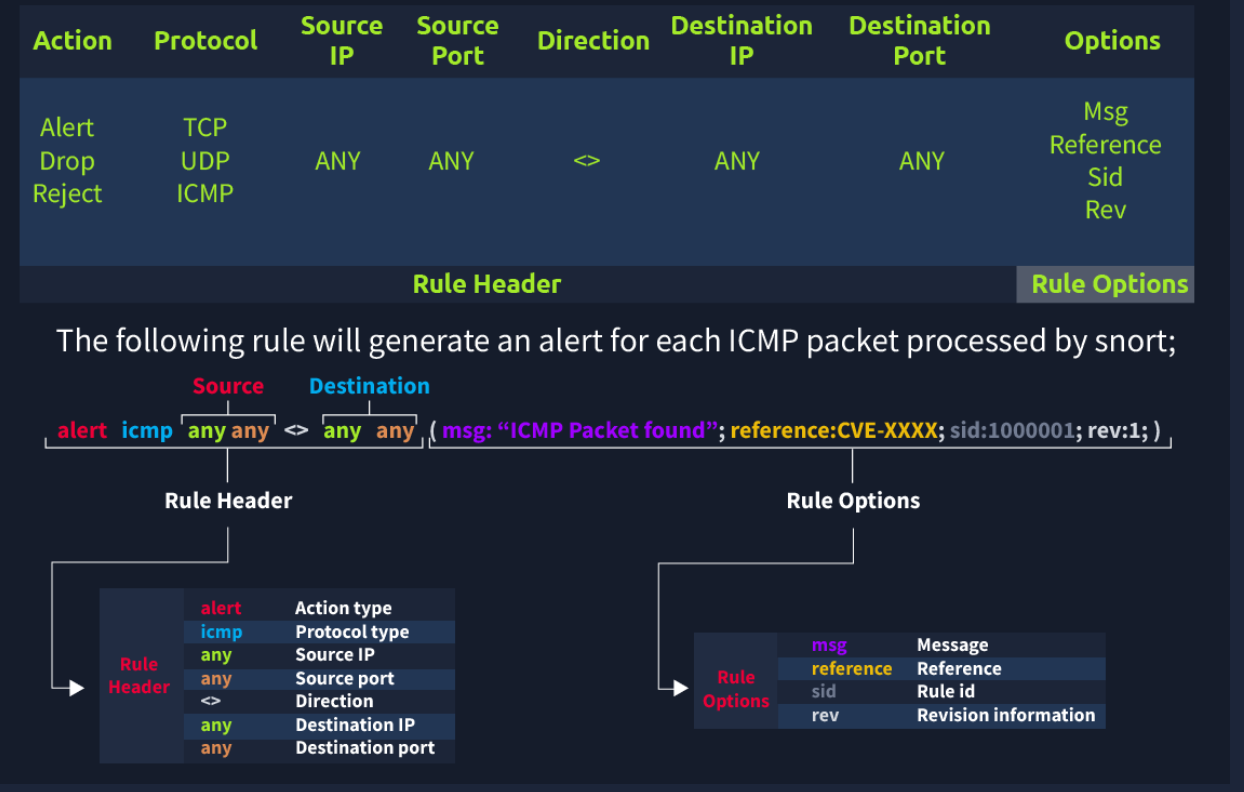

Snort rules = **action + protocol + src/dst IP + ports + direction + options**.

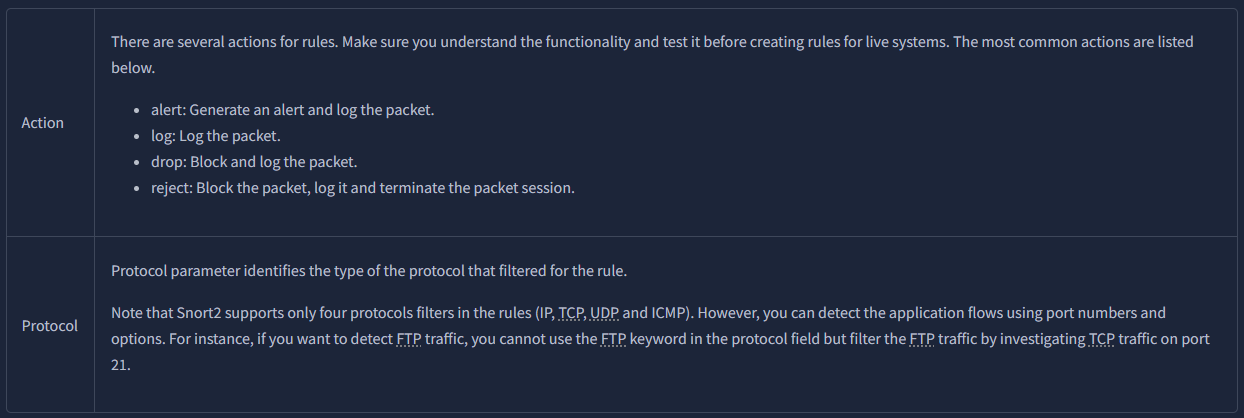

Common Actions¶

Direction¶

Examples¶

Simple ICMP alert¶

alert icmp any any <> any any (msg:"ICMP Packet Found"; sid:100001; rev:1;)

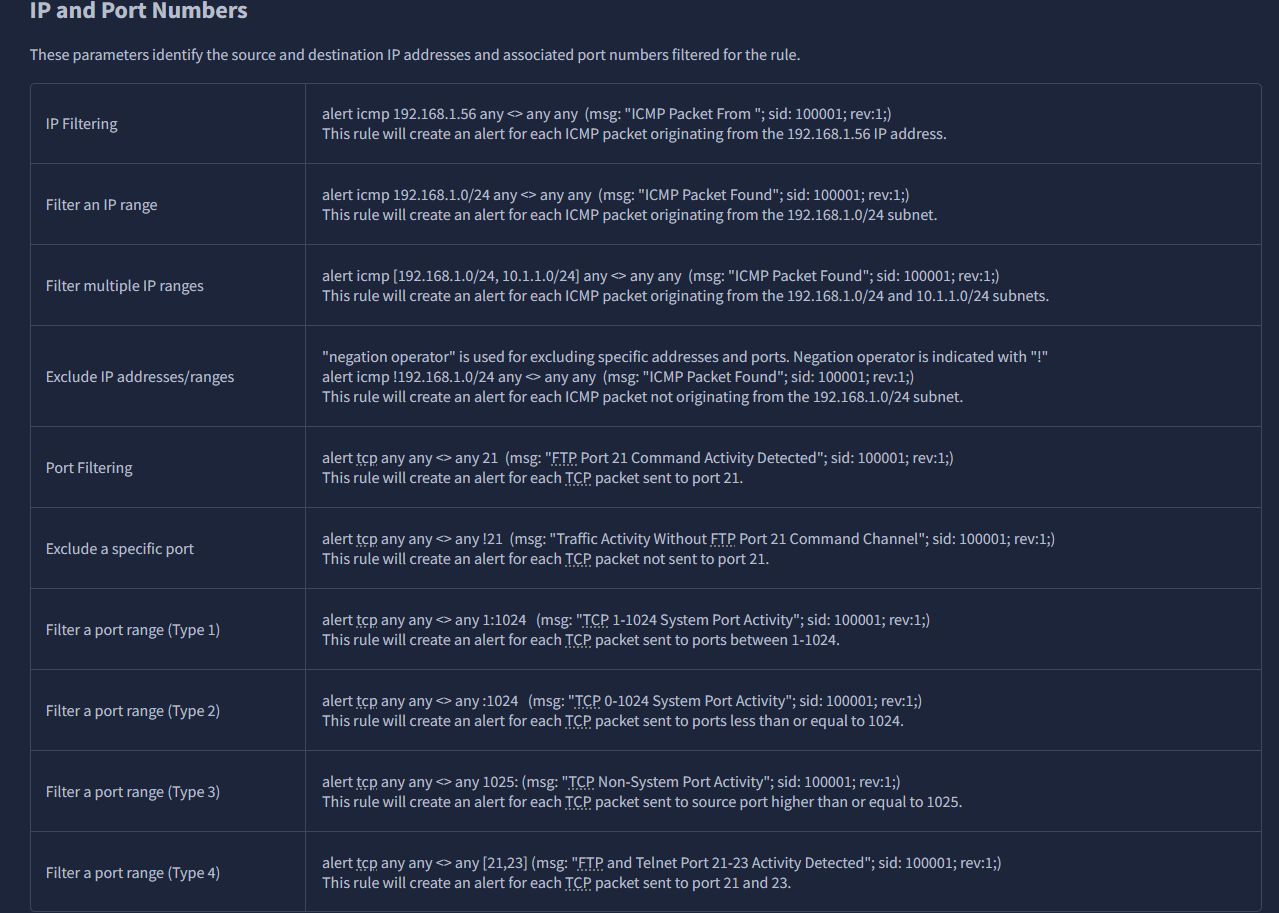

IP range¶

alert icmp 192.168.1.0/24 any <> any any (msg:"ICMP from subnet"; sid:100002; rev:1;)

Port filter¶

alert tcp any any -> any 21 (msg:"FTP traffic"; sid:100003; rev:1;)

Negation¶

alert tcp any any -> any !21 (msg:"Non-FTP traffic"; sid:100004; rev:1;)

TIP: Add your rules to /etc/snort/rules/local.rules.

Examples rules that i create for ctf room¶

Write a rule to detect all TCP packets from or to port 80.

alert tcp any 80 <> any any (msg:”TCP port 80 found”; sid:100001; rev:1;)

Write a single rule to detect "all TCP port 21"  traffic in the given pcap.

alert tcp any 21 <> any any (msg:"src:FTP found"; sid:100001; rev:1;)

What is the FTP service name?

sudo snort -r snort.log.1671731339 -X -n 10 // read 10 packets

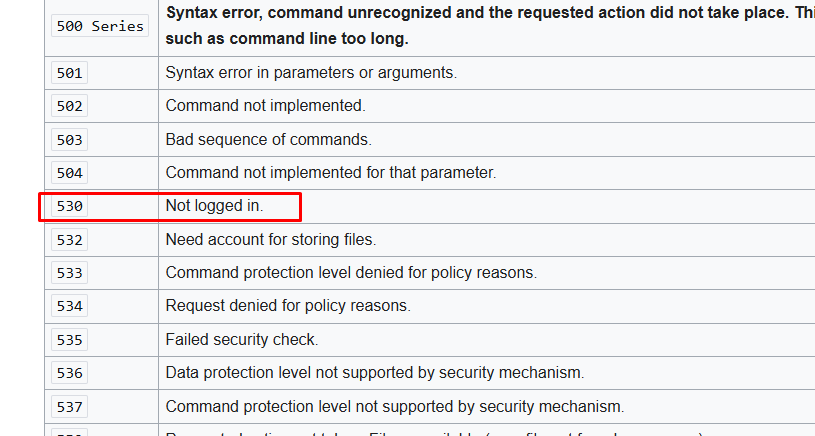

Write a rule to detect failed FTP login attempts in the given pcap.

alert tcp any 21 <> any any (msg:"Detectected Failed FTP Login"; content:"530 User"; sid:100003; rev:1;)

Write a rule to detect successful FTP logins in the given pcap.

alert tcp any 21 <> any any (msg:"Detected Successful FTP Login"; content:"230 User"; sid:100004;

Write a rule to detect FTP login attempts with a valid username but no password entered yet.

alert tcp any 21 <> any any (msg:"FTP Failed Login-Bad or No Password"; content:"331 Password"; sid:100005; rev:1;)

Write a rule to detect FTP login attempts with the "Administrator" username but no password entered yet.

alert tcp any 21 <> any any (msg:"FTP Failed Admin Login-Bad or No Password"; content:"331 Password"; fast_pattern; content:"Administrator"; sid:100006; rev:1;)

Write a rule to detect the PNG file in the given pcap.

alert tcp any any <> any any (msg:"PNG file Detected"; content:"|89 50 4A 47 0D 0A 1A 0A|"; sid:100002; rev:1;)

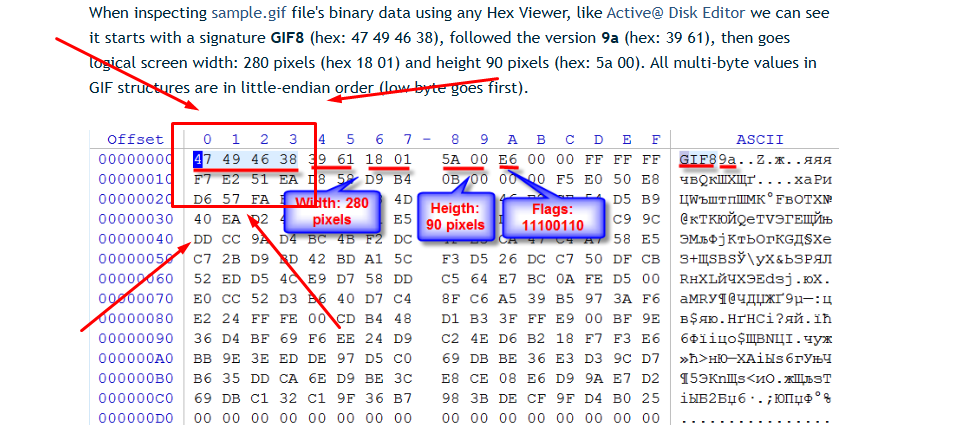

Write a rule to detect the GIF file in the given pcap.

alert tcp any any <> any any (msg:"GIF File Detected"; content:"|47 49 46 38 39|"; sid:100003; rev:1;)

lets create IDS Rules for torrent metafiles in the traffic!

Write a rule to detect the torrent metafile in the given pcap.

alert tcp any any <> any any (msg: "Torrent"; content:"torrent"; sid: 10000001; rev:1;)

Write a rule to detect packet payloads between 770 and 855 bytes.

alert tcp any any -> any any (msg:"Tcp connections"; dsize:770<>855;  sid: 100001; rev:1;)

wrong syntax rules¶

• 1 syntax error

  alert tcp any 3372 -> any any(msg: "Troubleshooting 1"; sid:1000001; rev:1;)


  [Syntax] Missing required space before options block: should be "... any any (msg: ...)"

• 1 syntax error

  alert icmp any -> any any (msg: "Troubleshooting 2"; sid:1000001; rev:1;)


  [Syntax] ICMP rules do not use ports; remove the trailing destination port "any".

• 1 syntax error

  alert icmp any any -> any any (msg: "ICMP Packet Found"; sid:1000001; rev:1;)
  alert tcp any any -> any 80,443 (msg: "HTTPX Packet Found"; sid:1000001; rev:1;)


  [Syntax] ICMP rule incorrectly includes ports ("any any"); ICMP has no ports.

• 2 syntax errors

  alert icmp any any -> any any (msg: "ICMP Packet Found"; sid:1000001; rev:1;)
  alert tcp any 80,443 -> any any (msg: "HTTPX Packet Found": sid:1000001; rev:1;)


  [Syntax 1] ICMP rule includes ports; ICMP has no ports. [Syntax 2] Extra colon after msg string: use ... msg:"HTTPX Packet Found"; sid:...

• 2 syntax errors

  alert icmp any any <> any any (msg: "ICMP Packet Found"; sid:1000001; rev:1;)
  alert icmp any any <- any any (msg: "Inbound ICMP Packet Found"; sid;1000002; rev:1;)


  alert tcp any any -> any 80,443 (msg: "HTTPX Packet Found": sid:1000003; rev:1;) [Syntax 1] Invalid direction operator "<-"; valid are "->" or "<>". [Syntax 2] Wrong separator in option: "sid;1000002" must be "sid:1000002".

• logic error (case sensitive; add nocase;)

  alert tcp any any <> any 80  (msg: "GET Request Found"; content:"|67 65 74|"; sid: 100001; rev:1;)


  [Logic] Content bytes 67 65 74 = "get" (lowercase). HTTP methods are typically uppercase. Add "nocase;" (or match ASCII "GET ") to avoid missing true positives.

• logic error (no msg; rule runs but not useful)

  alert tcp any any <> any 80  (content:"|2E 68 74 6D 6C|"; sid: 100001; rev:1;)


  [Logic] Missing "msg" option; alerts will have empty/unnamed message, reducing usefulness.

Manual PDF (Snort from tryhackme)¶
